Freefly - Ember S5K
Freefly - Ember S5K
Freefly designed Ember to be an efficient high speed camera. It’s small, light, and insanely fun to use. Ember is unique in that it can record continuous high speed footage with no ram based clip limit since it records directly to an internal SSD (either a 4TB or a 2.56TB high-endurance pSLC drive optimized for pre-record).*
Shooting high speed is now just like shooting anything else, push record to start and stop, and Ember captures everything to solid state memory - as simple... as that.
The Ember app for iOS means you can go from capture to sharing in seconds.
Check out these (untreated) sample clips shot with Ember.
Features
5K max resolution at 600fps
4K 800fps
Active EF Mount
Two SSD options
Gpixel sensor
Fast iOS based app workflow
Apple ProRes Codec
Global Shutter
Wireless Control
USB 3.2 Type C
*Actual formatted data capacity of 4TB drive is 3,980GB, and 2.56TB drive is 2,534GB
Tech Specs
S35 Gpixel Sensor
4K and 5K recording mode
10bit Apple ProRes Codec
Active EF compatible lens mount or universal locking lens mount (tested lenses)
4TB Drive option
Maximum shooting capacity for Ember
Actual formatted data capacity - 3,980GB
Capture time (max)
5120 x 2880, 600fps - 36min (1,296,000 frames, 15hrs of playback at 24fps)
4096 x 2160, 800fps - 45min (2,160,000 frames, 25hrs of playback at 24fps)
2.56TB drive option
High endurance drive rated for 80 Petabytes or 10,000 hours of continuous recording
Ideal for heavy use of Ember Pre-Record
Actual formatted data capacity - 2,534GB
Capture time (max)
5120 x 2880, 600fps - 23min (828,000 frames, 10hrs of playback at 24fps)
4096 x 2160, 800fps - 29min (1,392,000 frames, 16hrs of playback at 24fps)
Weight
With Active EF compatible lens mount: 830 g / 1.83 lbs

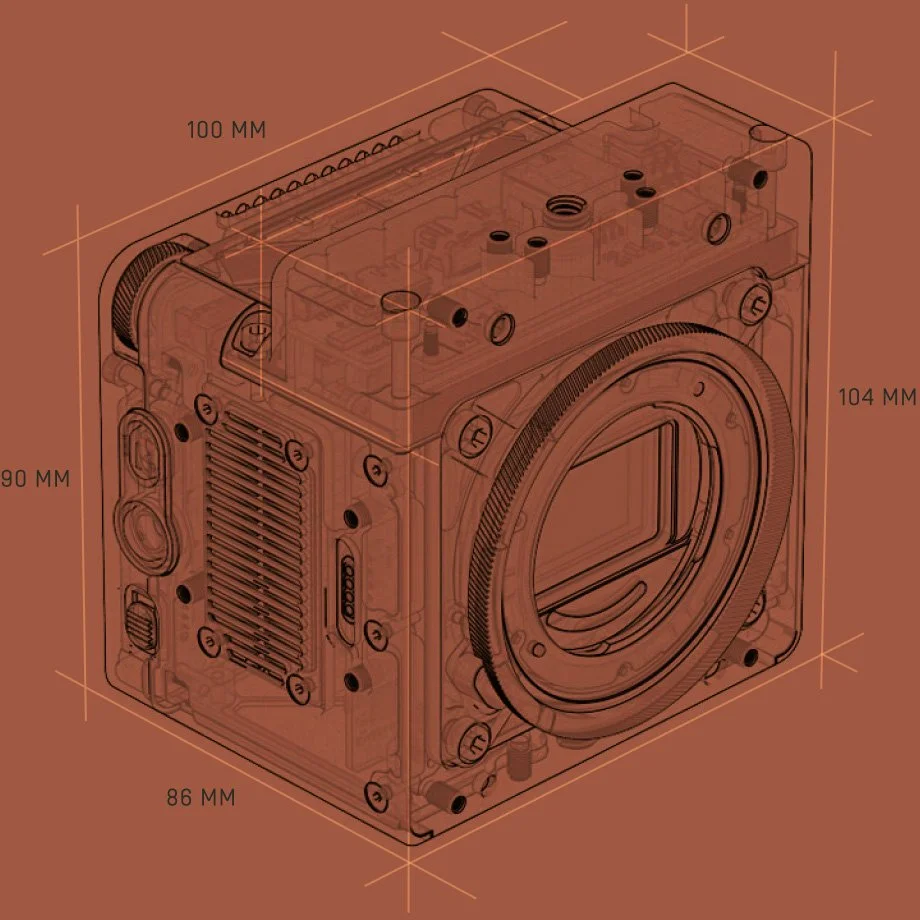

Dimensions
With Active EF compatible lens mount: 100 mm x 104 mm x 110 mm (WHD), 3.94 x 3.94 x 4.33" (WHD)

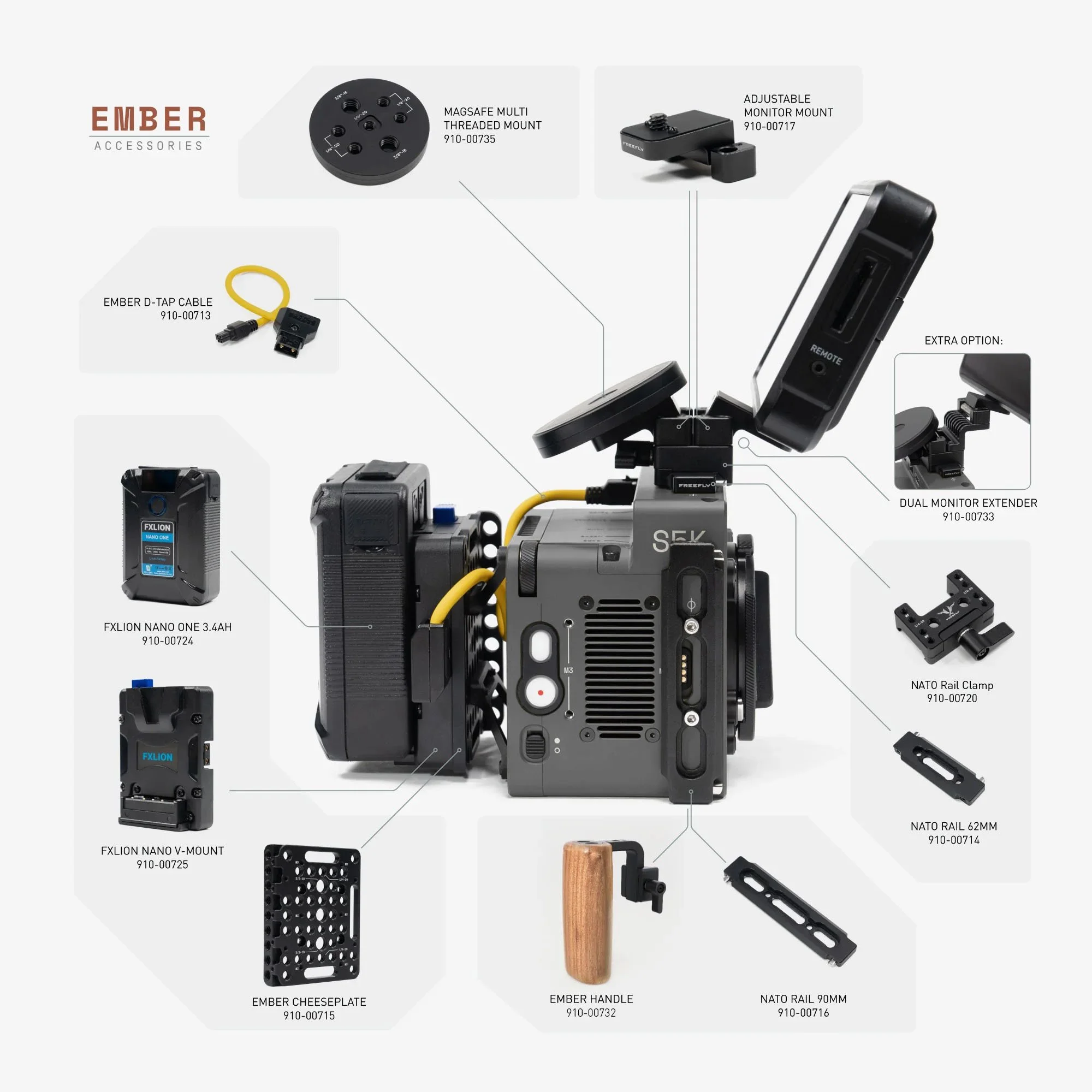

In the Box
All Ember S5K bodies ship with the following accessories:
Qty 1 - Ember S5K camera body
Qty 1 - Rear accessory mount stand-offs (pair)
Qty 1 - USB C-C 3.0 Cable
Qty 1 - D-Tap-Ember Power Cable
Qty 8 - M3 x 10mm SHCS fasteners for accessory mounts
We offer two pre-installed internal SSD options:
Ember S5K (Active EF Lens Mount, 4TB) - 950-00145
Qty 1 - Active EF compatible lens mount, pre-installed
Qty 1 - Internal 4TB SSD (pre-installed, user upgradable but not on-set swappable)
Ember S5K (Active EF Lens Mount, 2.56TB pSLC) - 950-00152
Qty 1 - Active EF compatible lens mount, pre-installed
Qty 1 - Internal 2.56TB pSLC SSD (pre-installed, user upgradable but not on-set swappable)
Compatibility
Ember S5K with EF lens mount
Lenses with EF mounts, with or without electronic internals
Compatible lens can be controlled (iris/focus) by Ember through camera and iOS/macOS app, but will not auto-focus
KipperTie Lens Mounts
Lens Mounts from C7 Adapters (M, EF, RF, Nikon, FD, PL, LPL
