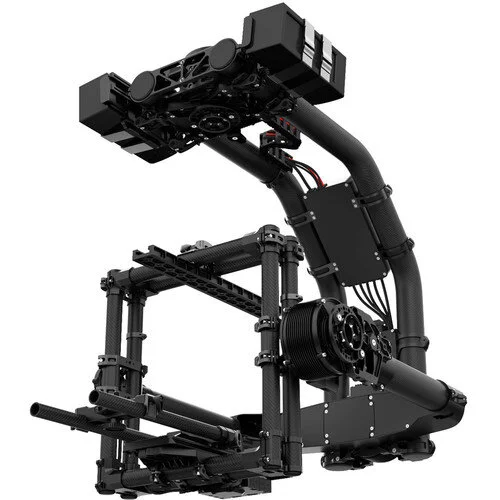

MōVI hit the gym! Freefly took everything great about the MōVI Pro and added some serious horsepower for the world's biggest cameras. MōVI XL is a lightweight, portable system that allows users to capture stable imagery in the most demanding environments.
Features:
Custom in house designed high torque direct drive motors
Axis locks for easy ground handling / balancing
Custom motor drives with high resolution encoders
Capable of performing at extreme speeds (75+mph)
Accessory power
Integrate Focus / Iris / Zoom motor drivers
Integrated control of Red cameras via RCP
3+ hour runtime powering gimbal and camera with onboard batteries (sold separately)
Completely wireless operation (power, video, control) allows for 1 minute changes from camera car to crane to cable cam
Underslung or overslung mounting
Compatible with Freefly Ecosystem - MōVI Controller, MIMIC, Pilot
50lb max payload
Capable of traveling as excess baggage on airlines
Quick Release system (Optional)
Travel case with custom cut foam insert (Optional)
Modular construction
Internal Wiring
Specs:
Weight (w/o batteries): 25.26lb
Camera cage dimensions: 399 x 255 x 289mm (L*W*H)
Maximum payload: 50lb (22.67Kg)
In the Box:
MōVI XL Gimbal
XL Top Rail
MōVI XL Accessory Bag
Fuse Mini 297 32V 30A (qty=3)
Fuse Mini 297 32V 20A (qty=2)
Fuse Mini 297 32V 10A (qty=1)
T-Handle Hex Key - 4 mm (qty=1)
Bolt M4 x 10 SHCS (qty=8)
Bolt ¼-20 x ½ (qty=4)
1/4-20 x 0.5 SHCS (qty= 8)
Aux UART to FRX (qty=1)
Harness Hub to TSU Power (qty=1)
2.0MM Assy - Custom Hex Driver (qty=1)
2.5MM Assy - Custom Hex Driver (qty=1)
3.0MM Assy - Custom Hex Driver (qty=1)
